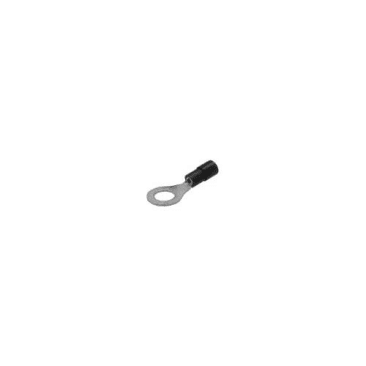

ILSCO NRBR-10-12-P20 NYLON RING BRAZED 10-12 1/2IN STUD
MFR Part #: NRBR-10-12-P20
SKU #: 3161681
Brand: ILSCO®
UPC: 783669208528
ILSCO® NRBR-10-12-P20 NRBR Insulated Ring Terminal, 10 to 12 AWG Conductor, 1.520 in L, Brazed Barrel, Yellow/Silver
UL 20U0 | UL/cUL 486A/B Listed | UL File No E6207 | PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm
Product Details
Attributes
Features
Resources
ILSCO®, NRBR-10-12-P20, Ring Terminal, Insulated, Series: NRBR, Copper Conductor, 10 to 12 AWG Conductor, 1/2 in Stud, 1.520 in Length, Brazed Barrel, Ring Tongue, 600 V, Specifications: 0.252 in Dia Maximum Wire Insulation, 105 deg C, Tin, Yellow/Silver, 0.756 in W Dimensions
Finish:Tin
Stud Size:1/2 in
- Barrel allows for two crimps
- Manufactured from high strength copper alloy
- Secure termination that cannot be removed unless the mounting screw is removed
- Provides strain relief, prevents exposure of wire conductors
- Smooth wire insertion into barrel
- Increased heat and chemical resistant qualities for more demanding applications
- Provide easy wire range identification 18 to 22 AWG Red 14 to 16 AWG Blue 10 to 12 AWG Yellow
- Provides low contact resistance
- Stronger crimp connection that will not split open, prevents wire pull out
- Ensures reliability for copper conductor
Product Details
ILSCO®, NRBR-10-12-P20, Ring Terminal, Insulated, Series: NRBR, Copper Conductor, 10 to 12 AWG Conductor, 1/2 in Stud, 1.520 in Length, Brazed Barrel, Ring Tongue, 600 V, Specifications: 0.252 in Dia Maximum Wire Insulation, 105 deg C, Tin, Yellow/Silver, 0.756 in W Dimensions
Attributes
Finish: Tin
Stud Size: 1/2 in
Features
- Barrel allows for two crimps
- Manufactured from high strength copper alloy
- Secure termination that cannot be removed unless the mounting screw is removed
- Provides strain relief, prevents exposure of wire conductors
- Smooth wire insertion into barrel
- Increased heat and chemical resistant qualities for more demanding applications
- Provide easy wire range identification 18 to 22 AWG Red 14 to 16 AWG Blue 10 to 12 AWG Yellow
- Provides low contact resistance
- Stronger crimp connection that will not split open, prevents wire pull out
- Ensures reliability for copper conductor
