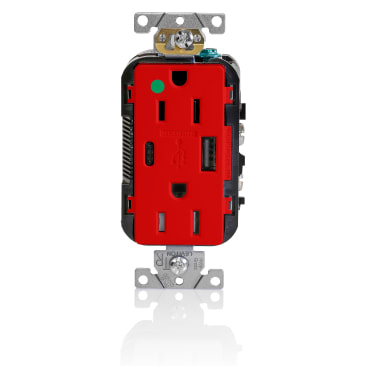

LEVITON T5633-HGR 15A 125V 2-POLE 3-WIRE HOSPITAL GRADE TAMPER RESISTANT DUPLEX RECEPTACLE/USB-A/C COMBINATION RED
Product Details
Attributes
Features
Resources
Leviton® Decora® Duplex USB Charger Receptacle, Combination Heavy Duty Tamper Resistant, 125 V AC 15 A 1/2 hp Electrical Rating, 2 Pole, 3 Wires, 14 to 12 AWG Wire, Type A/Type C™ USB, 2 USB Quantity, 2.4/3 A at 5 V 25 W USB, NEMA 5-15R Insulation, 1.73 in W x 1.68 in D x 4.04 in H Size, Vertical (Zero-U) Mounting, Hospital Grade, Wiring Method: Back/Side Wired, Thermoplastic, Red, Environmental Conditions: -10 to 40 deg C Operating, UL 94 V-0 Flammability
The Type A and Type C™ USB Charger/Tamper-Resistant Receptacle offers superior charging power for smartphones, tablets, laptops, monitors, printers and more. Two high powered vertical USB Ports, one Type A and one Type C™, deliver a combined total of 5.1 A charging current and 25+ W of power. A smart chip recognizes and optimizes the charging requirements of individual devices and the Type C™ port enables the cables to be inserted easily in either direction.
- Smart chip recognizes and optimizes the charging requirements of individual devices
- Type A and Type C™ ports charge phones and tablets faster than manufacturer supplied AC adapters
- The Type C™ port provides up to 59% faster charging power versus competitors
- One Type A port and one Type C™ port combined total of 5.1 A of charging power
- Tamper resistant to help prevent access by most non-rated/foreign objects
- USB ports tested to withstand over 10000 insertions
- Charges most Type A and Type C™ USB powered devices
- Type C™ port provides more power for faster charging
- Compatible with Decora® wallplates and Decora Plus™ screw less wallplates
Product Details
Leviton® Decora® Duplex USB Charger Receptacle, Combination Heavy Duty Tamper Resistant, 125 V AC 15 A 1/2 hp Electrical Rating, 2 Pole, 3 Wires, 14 to 12 AWG Wire, Type A/Type C™ USB, 2 USB Quantity, 2.4/3 A at 5 V 25 W USB, NEMA 5-15R Insulation, 1.73 in W x 1.68 in D x 4.04 in H Size, Vertical (Zero-U) Mounting, Hospital Grade, Wiring Method: Back/Side Wired, Thermoplastic, Red, Environmental Conditions: -10 to 40 deg C Operating, UL 94 V-0 Flammability
The Type A and Type C™ USB Charger/Tamper-Resistant Receptacle offers superior charging power for smartphones, tablets, laptops, monitors, printers and more. Two high powered vertical USB Ports, one Type A and one Type C™, deliver a combined total of 5.1 A charging current and 25+ W of power. A smart chip recognizes and optimizes the charging requirements of individual devices and the Type C™ port enables the cables to be inserted easily in either direction.
Attributes
Features
- Smart chip recognizes and optimizes the charging requirements of individual devices
- Type A and Type C™ ports charge phones and tablets faster than manufacturer supplied AC adapters
- The Type C™ port provides up to 59% faster charging power versus competitors
- One Type A port and one Type C™ port combined total of 5.1 A of charging power
- Tamper resistant to help prevent access by most non-rated/foreign objects
- USB ports tested to withstand over 10000 insertions
- Charges most Type A and Type C™ USB powered devices
- Type C™ port provides more power for faster charging
- Compatible with Decora® wallplates and Decora Plus™ screw less wallplates
