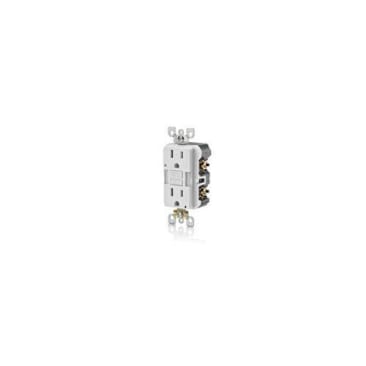

GFCI RECEPTACLE W/LED GUIDELIGHT TP 15A WH LEVITON X7592-W
MFR Part #: X7592-W
SKU #: 3176997
Brand: Leviton®
Please note this item is discontinued (order fulfillment will depend on stock availability): SmartlockPro® X7592-W Slim Duplex Guide Light Tamper-Resistant GFCI Receptacle With LED Indicator Lights, Self-Grounding Clip and Professional Grade Lockout, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Commercial Applications
CSA Certified | UL 94 V-2 Flammability Rated | NEMA WD-6 | ANSI C-73 | NOM 057 Certified | CSA C22.2 File No. 42 | CSA C22.2 File No. 144.1-06 | CSA File No. LR57811 | UL 498 | UL 943 | UL File No. E48380
Product Details
Features
Resources
SmartlockPro® GFCI Receptacle, Duplex Guide Light Tamper-Resistant, Series: Slim, 125 VAC, 15 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Professional Grade, -35 to 66 deg C, Screw Terminal, Polycarbonate, White, 4.21 in H x 1.69 in W x 1.32 in D Dimensions
- Takes up 25% less space in the wallbox vs other tamper-resistant GFCIs
- Terminals allow for easy wiring options back and Side wire capable
- External backwire clamps provide positive visual indication of wiring and exhibit very high holding force at standard torque levels
- Standard brass self-grounding clips (excluding WR versions)
- Features 5Patented bridge contact provides individual sets of contacts for GFCI receptacle face and downstream receptacles; no power to receptacle face if improperly wired (line load reversed)
- Patented lockout feature for added safety prevents RESET if GFCI is not operating properly
- Dual function LED offers indication of line load reversal and power availability
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high frequency noise reduces nuisance tripping
- Impact-resistant thermoplastic cover and body
- Test and reset button colors match device face
- Compatible with all Decora® devices and wallplates available in select Decora® colors
- TR symbol assures compliance with the NEC
- Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong or three-prong plug is inserted
- Sensor provides automatic ON/OFF based on ambient lighting
- Dual lens provides visible light with a variety of plugs or transformers
- Custom designed lenses with edge-mounted LEDs improve light dispersion
- Energy-efficient uses approximately 1 W of electricity - no bulbs to replace
- Saves space by eliminating the need to use an outlet for a plug-in night light
Product Details
SmartlockPro® GFCI Receptacle, Duplex Guide Light Tamper-Resistant, Series: Slim, 125 VAC, 15 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Professional Grade, -35 to 66 deg C, Screw Terminal, Polycarbonate, White, 4.21 in H x 1.69 in W x 1.32 in D Dimensions
Features
- Takes up 25% less space in the wallbox vs other tamper-resistant GFCIs
- Terminals allow for easy wiring options back and Side wire capable
- External backwire clamps provide positive visual indication of wiring and exhibit very high holding force at standard torque levels
- Standard brass self-grounding clips (excluding WR versions)
- Features 5Patented bridge contact provides individual sets of contacts for GFCI receptacle face and downstream receptacles; no power to receptacle face if improperly wired (line load reversed)
- Patented lockout feature for added safety prevents RESET if GFCI is not operating properly
- Dual function LED offers indication of line load reversal and power availability
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high frequency noise reduces nuisance tripping
- Impact-resistant thermoplastic cover and body
- Test and reset button colors match device face
- Compatible with all Decora® devices and wallplates available in select Decora® colors
- TR symbol assures compliance with the NEC
- Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong or three-prong plug is inserted
- Sensor provides automatic ON/OFF based on ambient lighting
- Dual lens provides visible light with a variety of plugs or transformers
- Custom designed lenses with edge-mounted LEDs improve light dispersion
- Energy-efficient uses approximately 1 W of electricity - no bulbs to replace
- Saves space by eliminating the need to use an outlet for a plug-in night light
