LEVITON 16362-OIG OR DEC DUP RECP IS GRD P3W 515R 20A 125V
MFR Part #: 16362-OIG
SKU #: 3237429
UPC: 007847790910

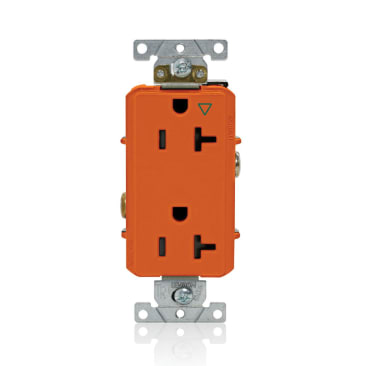

Decora® Plus 16362-OIG Isolated Ground Duplex Receptacle Outlet, 125 VAC, 20 A, 2-Pole, 3-Wire, Orange, NEMA 5-20R
10 Year
ANSI C-73 Specified | cULus Listed | Federal Specification W-C-596 | NOM-ANCE Certified | RoHS Compliant | UL 498 Listed
Product Details
Resources
Decora® Plus Isolated Ground Duplex Receptacle Outlet, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, 14 to 10 AWG Wire, Self-Grounding Grounding, NEMA Rating: NEMA 5-20R, Polyester Body, Brass/Phosphor Bronze Contact, Orange, -40 to 75 deg C, 4.06 in Length, 1.41 in Width, 1.07 in Height
Product Details
Decora® Plus Isolated Ground Duplex Receptacle Outlet, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, 14 to 10 AWG Wire, Self-Grounding Grounding, NEMA Rating: NEMA 5-20R, Polyester Body, Brass/Phosphor Bronze Contact, Orange, -40 to 75 deg C, 4.06 in Length, 1.41 in Width, 1.07 in Height
