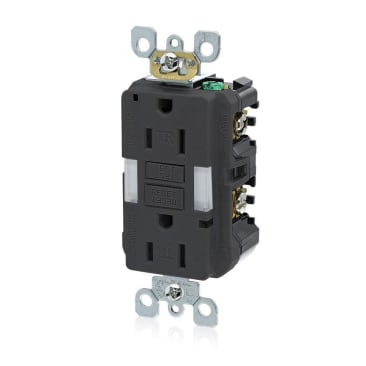

LEVITON GFNL1-E SMARTLOCKPRO 15A 125V TAMPER RESISTANT SELF TEST GFCI RECEPTACLE WITH GUIDE EBONY
Product Details
Attributes
Features
Resources
Leviton® SmartlockPro® Slim® GFCI Receptacle, Duplex Feed Through Guidelight Monochromatic Self-Test Slim Tamper Resistant, 125 V AC, 15 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Industrial Grade, -35 to 66 deg C, Back/Side Wire Terminal, Thermoplastic, Black, 4.21 in H x 1.69 in W x 1.32 in D Dimensions
The self-test SmartlockPro® slim GFCI/Guide light is a great way to add an extra element of safety when it's dark without losing outlet space in kitchens, bathrooms, laundry rooms and hospitality guest suites. Instead of needing to plug-in a nightlight and take up an outlet space, the device offers dual LED guide lights that turn ON and OFF automatically based on light levels and uses only 1 W of electricity. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile ON the market, the device allows for fast and easy installation, while Leviton® patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The self-test SmartlockPro® slim GFCI/Guide light is the smart choice in ground fault circuit interrupter protection.
- Sensor provides automatic ON/OFF based on ambient lighting
- Dual lens provides visible light with a variety of plugs or transformers
- Custom designed lenses with edge mounted LED's improve light dispersion
- Saves space by eliminating the need to use an outlet for a plug-in nightlight
- Provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI circuit within 3 sec
- Auto monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line load reversal
- Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over voltages
- Compatible with all Decora® devices and wallplates
