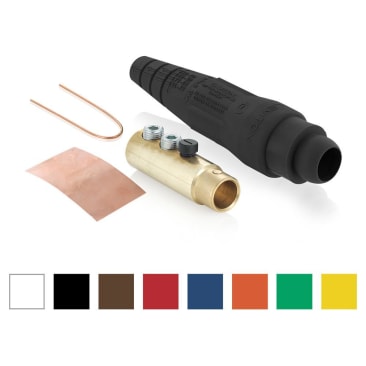

LEVITON 18D33-UG DETACHABLE BALLNOSE FEMALE PLUG GREEN
MFR Part #: 18D33-UG
SKU #: 3300259
Brand: Leviton®
UPC: 7847771945
Decora® 18D33-UG 18 Series Ball Nose Cam Type Detachable Plug, 400 A, 1/0 to 4/0 AWG Wire, Female Connection, NEMA 3R
Commercial Applications
CSA C22.2 No. 1691|UL 1691
Product Details
Attributes
Resources
Decora® Plug, Ball Nose Cam Type Detachable, Series: 18 Series, 400 A, 1/0 to 4/0 AWG Wire, Female, Solid Brass Contact, Santoprene TPV Housing, NEMA 3R, Threaded Mount, 1-Pole, Double Set Screw Termination, Green, 1.72 in Dia x 6.77 in L
Amperage Rating:400 A
Color:Green
Connection Type:Female
Mounting Type:Threaded
NEMA Rating:NEMA 3R
Series:18 Series
Specifications:1-Pole, Double Set Screw Termination
Type:Ball Nose Cam Type Detachable
Product Details
Decora® Plug, Ball Nose Cam Type Detachable, Series: 18 Series, 400 A, 1/0 to 4/0 AWG Wire, Female, Solid Brass Contact, Santoprene TPV Housing, NEMA 3R, Threaded Mount, 1-Pole, Double Set Screw Termination, Green, 1.72 in Dia x 6.77 in L
Attributes
Amperage Rating: 400 A
Color: Green
Connection Type: Female
Mounting Type: Threaded
NEMA Rating: NEMA 3R
Series: 18 Series
Specifications: 1-Pole, Double Set Screw Termination
Type: Ball Nose Cam Type Detachable
