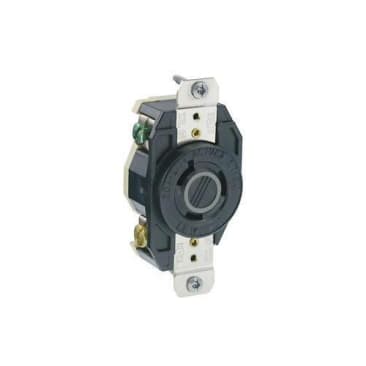

LEVITON 2330 20A 277V 2-POLE 3-WIRE LOCKING INDUSTRIAL SINGLE RECEPTACLE EBONY
Product Details
Features
Resources
Leviton®, 2330, Locking Receptacle, Grounding Single, 277 V AC, 20 A, 2 hp, 2 Pole, 3 Wires, NEMA L7-20R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions
Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.
- Flush mount
- Withstands 2000 VAC per UL 498 dielectric voltage
- Maximum 30 deg C after 250 cycles overload at 200% rated current temperature rise
- 14 to 8 AWG terminal accommodation
- Nickel plated solid brass strap for a lower resistance grounding path and superior corrosion resistance
- Valox® construction for endurance and resistance to impact and abuse
- Triple head brass #10 terminal screws for faster, more secure installation
- 1-piece contacts for superior conductivity
- Box mounting
Product Details
Leviton®, 2330, Locking Receptacle, Grounding Single, 277 V AC, 20 A, 2 hp, 2 Pole, 3 Wires, NEMA L7-20R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions
Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.
Features
- Flush mount
- Withstands 2000 VAC per UL 498 dielectric voltage
- Maximum 30 deg C after 250 cycles overload at 200% rated current temperature rise
- 14 to 8 AWG terminal accommodation
- Nickel plated solid brass strap for a lower resistance grounding path and superior corrosion resistance
- Valox® construction for endurance and resistance to impact and abuse
- Triple head brass #10 terminal screws for faster, more secure installation
- 1-piece contacts for superior conductivity
- Box mounting
