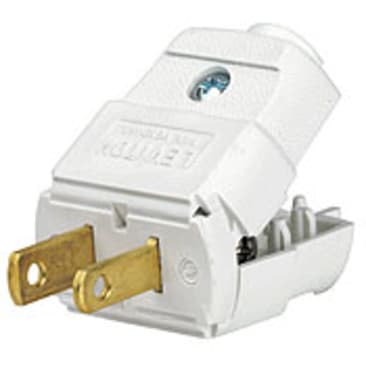

LEVITON 101-WP 15A 125V 2-POLE 2-WIRE POLARIZED PLUG WHITE
MFR Part #: 101-WP
SKU #: 3088083
Brand: Leviton®
UPC: 7847702568
Leviton® 101-WP Cable Mount Light Duty Polarized Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 2 Wires, White
2 Years
Residential Applications
CSA Certified | NOM 057 | UL File No. E13393
Product Details
Attributes
Features
Resources
Leviton® Straight Blade Plug, Cable Mount Light Duty Polarized, 125 VAC, 15 A, 2 Pole, 2 Wires, NEMA 1-15P, Residential Grade, 1/4 in Cord Dia, -40 to 60 deg C, Thermoplastic, White, 1.63 in H x 0.81 in W x 1.38 in D
Amperage Rating:15 A
Voltage Rating:125 V AC
Color:White
Grade:Residential
NEMA Rating:NEMA 1-15P
Number of Poles:2
Number of Wires:2
Temperature Rating:-40 to 60 deg C
Type:Cable Mount Light Duty Polarized
- Triple drive standard head screws
- NEMA configuration number and rating molded on face of device for easy identification
- Rubber body is dirt and moisture resistant
- Deep slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
- Husk and module keyed for easy alignment during wiring
- Built-in cord grip adjusts automatically for use with #18 to 3 AWG through #12 to 3 AWG cords
- Motor base inlet accepts #10 AWG maximum copper or copper clad wire
- Brass plug blades and connector contacts for maximum conductivity
- Zinc plated steel assembly screws and solid brass blade and contacts
Product Details
Leviton® Straight Blade Plug, Cable Mount Light Duty Polarized, 125 VAC, 15 A, 2 Pole, 2 Wires, NEMA 1-15P, Residential Grade, 1/4 in Cord Dia, -40 to 60 deg C, Thermoplastic, White, 1.63 in H x 0.81 in W x 1.38 in D
Attributes
Amperage Rating: 15 A
Voltage Rating: 125 V AC
Color: White
Grade: Residential
NEMA Rating: NEMA 1-15P
Number of Poles: 2
Number of Wires: 2
Temperature Rating: -40 to 60 deg C
Type: Cable Mount Light Duty Polarized
Features
- Triple drive standard head screws
- NEMA configuration number and rating molded on face of device for easy identification
- Rubber body is dirt and moisture resistant
- Deep slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
- Husk and module keyed for easy alignment during wiring
- Built-in cord grip adjusts automatically for use with #18 to 3 AWG through #12 to 3 AWG cords
- Motor base inlet accepts #10 AWG maximum copper or copper clad wire
- Brass plug blades and connector contacts for maximum conductivity
- Zinc plated steel assembly screws and solid brass blade and contacts
