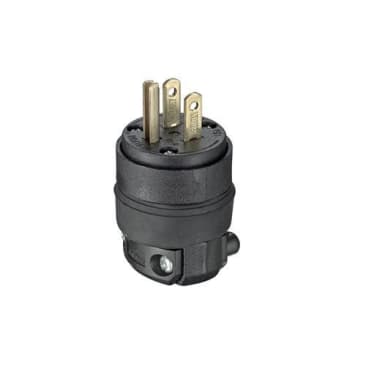

LEVITON 515PR 15A 125V 2-POLE 3-WIRE DEAD FRONT PLUG EBONY
Product Details
Features
Resources
Leviton®, 515PR, Straight Blade Plug, Cable Mount Grounding, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Commercial/Residential Grade, 0.245 to 0.7 in Diameter Cord, -40 to 60 deg C, EPTR Rubber, Black, 1.54 in Dia x 2.77 in H Dimensions
Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant and they are ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.
- Triple drive standard head screws
- NEMA configuration number and rating molded on face of device for easy identification
- Rubber body is dirt and moisture resistant
- Husk and module keyed for easy alignment during wiring
- Rugged PVC body resist moisture and chemicals
- Speed thread assembly screws tighten with just a few quick turns
- Zinc plated steel assembly screws and solid brass blade and contacts
- 18 to 12 AWG terminal accommodation
- Suited for outdoor cords
- Deep slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
- Built-in cord grip adjusts automatically for use with #18 to 3 AWG through #12 to 3 AWG cords
- Motor base inlet accepts #10 AWG maximum copper or copper clad wire
Product Details
Leviton®, 515PR, Straight Blade Plug, Cable Mount Grounding, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Commercial/Residential Grade, 0.245 to 0.7 in Diameter Cord, -40 to 60 deg C, EPTR Rubber, Black, 1.54 in Dia x 2.77 in H Dimensions
Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant and they are ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.
Features
- Triple drive standard head screws
- NEMA configuration number and rating molded on face of device for easy identification
- Rubber body is dirt and moisture resistant
- Husk and module keyed for easy alignment during wiring
- Rugged PVC body resist moisture and chemicals
- Speed thread assembly screws tighten with just a few quick turns
- Zinc plated steel assembly screws and solid brass blade and contacts
- 18 to 12 AWG terminal accommodation
- Suited for outdoor cords
- Deep slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
- Built-in cord grip adjusts automatically for use with #18 to 3 AWG through #12 to 3 AWG cords
- Motor base inlet accepts #10 AWG maximum copper or copper clad wire
