LEVITON 5456-VY 20A 250V 2-POLE 3-WIRE PYTHON PLUG YELLOW
Product Details
Features
Resources

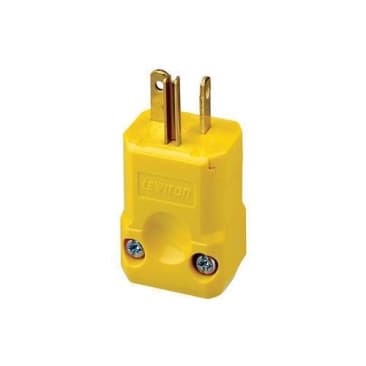

Leviton® 5456-VY Straight Blade Plug, Cable Mount Grounding, 250 V AC, 20 A, 2 Pole, 3 Wires, NEMA 6-20P NEMA Rating, Industrial Grade, 0.25 to 0.655 in Diameter Cord, -40 to 60 deg C, Nylon, Yellow, 1.81 in H x 1.41 in W x 1.22 in D Dimensions
When it comes to the demanding nature of todays commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton® Python® straight blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python® exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in todays faced paced world where lost minutes on a job can translate into lost profits.
- Hinged design for fast, easy, installation and assembly
- Super tough high impact nylon body
- Triple drive screws for easy wiring standard, Philips® and Robertson
- Clear thermoplastic back cover for easy visual inspection of wiring
- 18 to 10 AWG terminal accommodation
- Zinc plated steel assembly screws and solid brass blade and contacts
- Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws
- Features hinged design for fast, easy, installation and assembly
Product Details
Leviton® 5456-VY Straight Blade Plug, Cable Mount Grounding, 250 V AC, 20 A, 2 Pole, 3 Wires, NEMA 6-20P NEMA Rating, Industrial Grade, 0.25 to 0.655 in Diameter Cord, -40 to 60 deg C, Nylon, Yellow, 1.81 in H x 1.41 in W x 1.22 in D Dimensions
When it comes to the demanding nature of todays commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton® Python® straight blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python® exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in todays faced paced world where lost minutes on a job can translate into lost profits.
Features
- Hinged design for fast, easy, installation and assembly
- Super tough high impact nylon body
- Triple drive screws for easy wiring standard, Philips® and Robertson
- Clear thermoplastic back cover for easy visual inspection of wiring
- 18 to 10 AWG terminal accommodation
- Zinc plated steel assembly screws and solid brass blade and contacts
- Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws
- Features hinged design for fast, easy, installation and assembly
