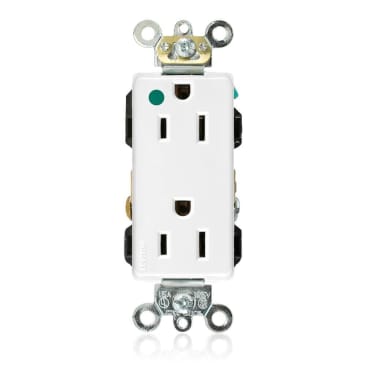

LEVITON 16262-HGW DECORA 15A 125V 2-POLE 3-WIRE HOSPITAL DUPLEX RECEPTACLE WHITE
MFR Part #: 16262-HGW
SKU #: 3126687
Brand: Leviton®
UPC: 7847781872
Leviton® 16262-HGW 1-Phase Duplex Extra Heavy Duty Self-Grounding Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, White
Commercial Applications
NEMA WD1/WD6 | ANSI C73 | NOM 057 | CSA C22.2 No. 42 File No. 152105 | UL 498HG File No. E13399 | UL94 V-2 Flammability Rating
Product Details
Features
Resources
Leviton®, 16262-HGW, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Self-Grounding, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, White, 46 in H x 1.52 in W x 1.14 in D Dimensions
- Durable thermoplastic face in an array of contemporary colors
- Receptacles have a locked-in mounting strap with a self-grounding clip riveted to the strap
- Hospital grade tamper resistant receptacles include a unique shutter mechanism that opens easily for the insertion of 2 or 3-prong plugs while preventing entry by other small objects into either outlet slot
- Hospital grade isolated ground receptacles protect sensitive electronic equipment and eliminate electromagnetic interference by providing a separate path to ground
- Power Indication™ meets UL 498 hospital grade identification requirements
Product Details
Leviton®, 16262-HGW, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Self-Grounding, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, White, 46 in H x 1.52 in W x 1.14 in D Dimensions
Features
- Durable thermoplastic face in an array of contemporary colors
- Receptacles have a locked-in mounting strap with a self-grounding clip riveted to the strap
- Hospital grade tamper resistant receptacles include a unique shutter mechanism that opens easily for the insertion of 2 or 3-prong plugs while preventing entry by other small objects into either outlet slot
- Hospital grade isolated ground receptacles protect sensitive electronic equipment and eliminate electromagnetic interference by providing a separate path to ground
- Power Indication™ meets UL 498 hospital grade identification requirements
