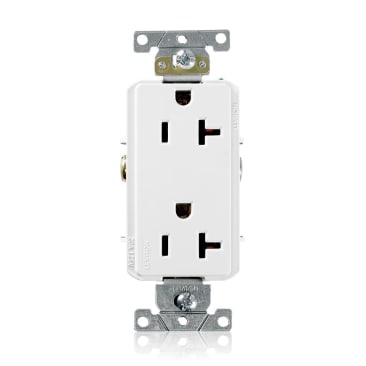

LEVITON 16352-W DECORA 20A 125V 2-POLE 3-WIRE DUPLEX RECEPTACLE WHITE
MFR Part #: 16352-W
SKU #: 3063340
Brand: Leviton®
UPC: 7847781972
Leviton® 16352-W Heavy Duty Self Grounding Straight Blade Duplex Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White
ANSI C-73 | CSA C22.2 No. 42 File No. LR-406 | NOM 057 | UL 498 File No. E13399 | UL 94 Flammability Rating
Product Details
Features
Resources
Leviton® 16352-W Straight Blade Duplex Receptacle, Heavy Duty Self Grounding, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, White, 4.06 in H x 1.31 in W x 1.14 in D Dimensions
- Back wire and side wire terminal options
- Heavy gauge locked-in wraparound strap
- Back wire terminals accept up to no 10 AWG copper or copper clad wire, solid or stranded
- Brass staked on self-grounding clip
- Heavy duty triple-wipe brass contacts for long service life
- Impact-resistant thermoplastic construction
Product Details
Leviton® 16352-W Straight Blade Duplex Receptacle, Heavy Duty Self Grounding, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, White, 4.06 in H x 1.31 in W x 1.14 in D Dimensions
Features
- Back wire and side wire terminal options
- Heavy gauge locked-in wraparound strap
- Back wire terminals accept up to no 10 AWG copper or copper clad wire, solid or stranded
- Brass staked on self-grounding clip
- Heavy duty triple-wipe brass contacts for long service life
- Impact-resistant thermoplastic construction
