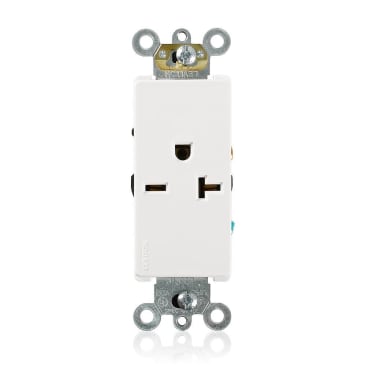

LEVITON 16441-W DECORA 20A 250V 2-POLE 3-WIRE SINGLE RECEPTACLE WHITE
Product Details
Features
Resources
Leviton®, 16441-W, Straight Blade Receptacle, 1-Phase Heavy Duty Self-Grounding Single, 250 V AC, 20 A, 2 hp, 2 Pole, 3 Wires, NEMA 6-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, White, 46 in H x 1.52 in W x 1.14 in D Dimensions
Leviton® line of heavy duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper resistant and more, these commercial grade devices are the electrical contractors choice for use in hotels, schools, hospitals and commercial office buildings.
- Heavy gauge locked-in wraparound strap
- Back wire terminals accept up to no 10 AWG copper or copper clad wire, solid or stranded
- Brass staked on self-grounding clip
- Heavy duty triple wipe brass contacts for long service life
- Impact resistant thermoplastic construction
- Back wire and side wire terminal options
Product Details
Leviton®, 16441-W, Straight Blade Receptacle, 1-Phase Heavy Duty Self-Grounding Single, 250 V AC, 20 A, 2 hp, 2 Pole, 3 Wires, NEMA 6-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, White, 46 in H x 1.52 in W x 1.14 in D Dimensions
Leviton® line of heavy duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper resistant and more, these commercial grade devices are the electrical contractors choice for use in hotels, schools, hospitals and commercial office buildings.
Features
- Heavy gauge locked-in wraparound strap
- Back wire terminals accept up to no 10 AWG copper or copper clad wire, solid or stranded
- Brass staked on self-grounding clip
- Heavy duty triple wipe brass contacts for long service life
- Impact resistant thermoplastic construction
- Back wire and side wire terminal options
