LEVITON 5661 15A 250V 2-POLE 3-WIRE SINGLE RECEPTACLE BROWN
Product Details
Features
Resources

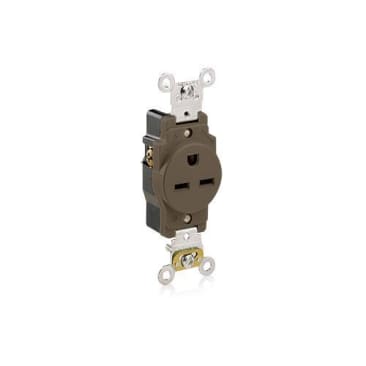

Leviton®, 5661, Straight Blade Receptacle, 1-Phase Heavy Duty Single, 250 V AC, 15 A, 1-1/2 hp, 2 Pole, 3 Wires, NEMA 6-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Santoprene TPV, Brown, 46 in H x 1.31 in W x 16 in D Dimensions
Leviton® line of heavy duty industrial grade receptacles are available with a number of wiring options and features. These heavy duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact resistant construction.
- Impact resistant thermoplastic nylon cover and body
- Four corner latches securely fasten face
- Large triple wipe, brass T contacts for superior contact and conductivity
- Back and side wiring options
- Brass terminal screws to reduce conductor oxidation
- Break-OFF tabs allow easy 2-circuit conversion
- Apron barrier to prevent accidental contact between terminal screw heads and metal box
- Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
- Wire lead receptacles for fast and easy installation
- Wallbox mounting
- Self-grounding
- 1-phase
- 2000 VAC minimum dielectric strength
- 14 to 10 AWG wire terminal
- Zinc plated steel strap
Product Details
Leviton®, 5661, Straight Blade Receptacle, 1-Phase Heavy Duty Single, 250 V AC, 15 A, 1-1/2 hp, 2 Pole, 3 Wires, NEMA 6-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Santoprene TPV, Brown, 46 in H x 1.31 in W x 16 in D Dimensions
Leviton® line of heavy duty industrial grade receptacles are available with a number of wiring options and features. These heavy duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact resistant construction.
Features
- Impact resistant thermoplastic nylon cover and body
- Four corner latches securely fasten face
- Large triple wipe, brass T contacts for superior contact and conductivity
- Back and side wiring options
- Brass terminal screws to reduce conductor oxidation
- Break-OFF tabs allow easy 2-circuit conversion
- Apron barrier to prevent accidental contact between terminal screw heads and metal box
- Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
- Wire lead receptacles for fast and easy installation
- Wallbox mounting
- Self-grounding
- 1-phase
- 2000 VAC minimum dielectric strength
- 14 to 10 AWG wire terminal
- Zinc plated steel strap
