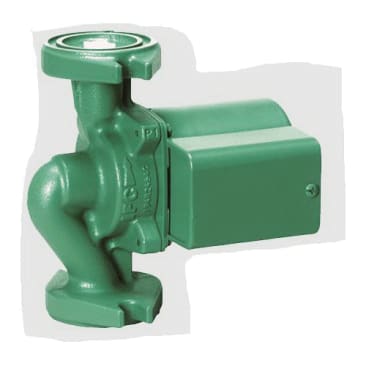

TACO 006-SC7-IFC 1/40HP STAINLESS STEEL CIRCULATOR UNION WITH CHECK VALVE
Product Details
Features
Resources
Taco Comfort Solutions® Circulator Pump, 00 Series, Model: 006-IFC, 0 to 9 gpm Flow Rate, 8-1/2 ft Maximum Head, 115 V, 0.52 A, 60 Hz, 125 psi Maximum Pressure, 3250 rpm Motor Speed Rating, 1/40 hp, Union Connection, 1 ph Phase, 220 deg F, Stainless Steel, 5-15/16 in H x 6 in W x 3-15/16 in D, Additional Information: Non-Metallic Impeller Material
The compact Taco 006-IFC with an integral flow check is designed for circulating hot and chilled fresh water in open and closed loop applications. With its patented location at the impeller inlet, the IFC eliminates the added installation costs of a separate in-line flow check, simplifies piping and improves system performance. The unique, replaceable cartridge contains all moving parts and is easy to service instead of replacing the entire unit. It's self-lubricating, maintenance free design provides quiet, efficient operation and unmatched reliability.
- Integral Flow Check (IFC) prevents gravity flow, eliminates separate in-line flow check, reduces installed cost, easy to service
- Improved performance vs standard in-line flow check
- Unique replaceable cartridge design
- Unmatched reliability
- Quiet, efficient operation
- Self lubricating, no mechanical seal
Product Details
Taco Comfort Solutions® Circulator Pump, 00 Series, Model: 006-IFC, 0 to 9 gpm Flow Rate, 8-1/2 ft Maximum Head, 115 V, 0.52 A, 60 Hz, 125 psi Maximum Pressure, 3250 rpm Motor Speed Rating, 1/40 hp, Union Connection, 1 ph Phase, 220 deg F, Stainless Steel, 5-15/16 in H x 6 in W x 3-15/16 in D, Additional Information: Non-Metallic Impeller Material
The compact Taco 006-IFC with an integral flow check is designed for circulating hot and chilled fresh water in open and closed loop applications. With its patented location at the impeller inlet, the IFC eliminates the added installation costs of a separate in-line flow check, simplifies piping and improves system performance. The unique, replaceable cartridge contains all moving parts and is easy to service instead of replacing the entire unit. It's self-lubricating, maintenance free design provides quiet, efficient operation and unmatched reliability.
Features
- Integral Flow Check (IFC) prevents gravity flow, eliminates separate in-line flow check, reduces installed cost, easy to service
- Improved performance vs standard in-line flow check
- Unique replaceable cartridge design
- Unmatched reliability
- Quiet, efficient operation
- Self lubricating, no mechanical seal
