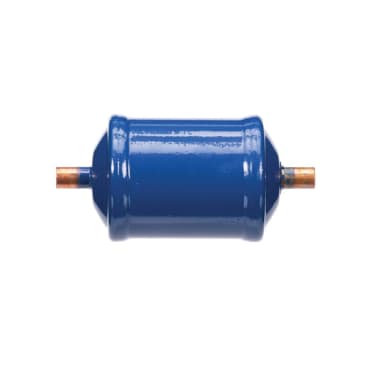

WHITE RODGERS 047611 EK 162 1/4 SAE FLARE LIQUID LINE FILTER DRIER
MFR Part #:Â 047611
SKU #:Â 1686081
Brand: White-Rodgers™
WHITE-RODGERS™ EK Series EK 162 047611 Liquid Line Filter Drier, 1/4 in, SAE Flared
cUL/UL File No. SA3124
Product Details
Attributes
Features
Resources
WHITE-RODGERS™ Liquid Line Filter Drier, EK Series, Model: EK 162, 1/4 in, SAE Flared Connection, 680 psig, 20 um, R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-500, R-502, R-507 Refrigerant, 16 cu-in Unit, Steel, Finish: Epoxy Powder Painted
The EK Liquid Line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration. The EK is a premium universal replacement liquid line filter drier for CFC, HCFC and HFC refrigerants including R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-500, R-502 and R-507.
Connection Type:SAE Flared
Size:1/4 in
Finish:Epoxy Powder Painted
Material:Steel
Micron Rating:20 um
Model:EK 162
Pressure Rating:680 psig
Refrigerant Type:R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-500, R-502, R-507
Series:EK Series
Unit Size:16 cu-in
- Filtration first for more effective use of surface area of desiccant
- High moisture and acid removal capacity
- Corrosion-resistant epoxy powder paint finish
- Approved for POE oils with Copeland™ compressors
- Shock-resistant steel shell construction
Product Details
WHITE-RODGERS™ Liquid Line Filter Drier, EK Series, Model: EK 162, 1/4 in, SAE Flared Connection, 680 psig, 20 um, R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-500, R-502, R-507 Refrigerant, 16 cu-in Unit, Steel, Finish: Epoxy Powder Painted
The EK Liquid Line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration. The EK is a premium universal replacement liquid line filter drier for CFC, HCFC and HFC refrigerants including R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-500, R-502 and R-507.
Attributes
Connection Type:Â SAE Flared
Size:Â 1/4 in
Finish:Â Epoxy Powder Painted
Material:Â Steel
Micron Rating:Â 20 um
Model:Â EK 162
Pressure Rating:Â 680 psig
Refrigerant Type:Â R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-500, R-502, R-507
Series:Â EK Series
Unit Size:Â 16 cu-in
Features
- Filtration first for more effective use of surface area of desiccant
- High moisture and acid removal capacity
- Corrosion-resistant epoxy powder paint finish
- Approved for POE oils with Copeland™ compressors
- Shock-resistant steel shell construction
