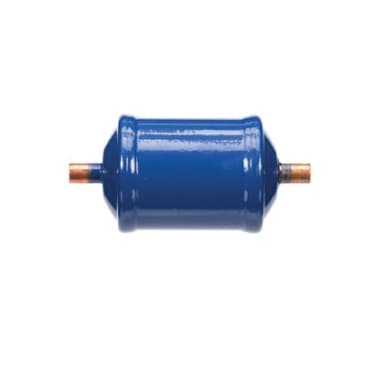

WHITE RODGERS 060010 EK 032MF 1/4 MXF SAE FLARE LIQUID LINE FILTER DRIER
MFR Part #:Â 060010
SKU #:Â 1686056
Brand: White-Rodgers™
WHITE-RODGERS™ EK Series EK 032MF 060010 Liquid Line Filter Drier, Male x Female SAE Flared
UL File No. SA3124
Product Details
Attributes
Features
Resources
WHITE-RODGERS™ Liquid Line Filter Drier, EK Series, Model: EK 032MF, Male x Female SAE Flared Connection, 680 psig, 20 um, R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-500, R-502, R-507 Refrigerant, 3 cu-in Unit, 2.8 ton Flow, For Use With: CFC, HCFC, HFC Refrigerants, Steel, Finish: Epoxy Powder-Coated, 3.92 in L x 1.75 in H
The EK Liquid Line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration. The EK is a premium universal replacement liquid line filter drier for CFC, HCFC and HFC refrigerants including R-12, R-134a, R-22, R-404A, R-407C, R-410A, R-500, R-502 and R-507.
Connection Type:Male x Female SAE Flared
Dimensions:3.92 in L x 1.75 in H
Finish:Epoxy Powder-Coated
Flow Capacity:2.8 ton
Material:Steel
Micron Rating:20 um
Model:EK 032MF
Pressure Rating:680 psig
Refrigerant Type:R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-500, R-502, R-507
Series:EK Series
Suitable For Use With:CFC, HCFC, HFC Refrigerants
Unit Size:3 cu-in
- Filtration first for more effective use of surface area of desiccant
- High moisture and acid removal capacity
- Solid copper connections
- Corrosion-resistant epoxy powder paint finish
- Approved for POE oils with Copeland® compressors
- Shock-resistant steel shell construction
- Desiccant blend optimized for high water capacity and acid capacity
Product Details
WHITE-RODGERS™ Liquid Line Filter Drier, EK Series, Model: EK 032MF, Male x Female SAE Flared Connection, 680 psig, 20 um, R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-500, R-502, R-507 Refrigerant, 3 cu-in Unit, 2.8 ton Flow, For Use With: CFC, HCFC, HFC Refrigerants, Steel, Finish: Epoxy Powder-Coated, 3.92 in L x 1.75 in H
The EK Liquid Line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration. The EK is a premium universal replacement liquid line filter drier for CFC, HCFC and HFC refrigerants including R-12, R-134a, R-22, R-404A, R-407C, R-410A, R-500, R-502 and R-507.
Attributes
Connection Type:Â Male x Female SAE Flared
Dimensions:Â 3.92 in L x 1.75 in H
Finish:Â Epoxy Powder-Coated
Flow Capacity:Â 2.8 ton
Material:Â Steel
Micron Rating:Â 20 um
Model:Â EK 032MF
Pressure Rating:Â 680 psig
Refrigerant Type:Â R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-500, R-502, R-507
Series:Â EK Series
Suitable For Use With:Â CFC, HCFC, HFC Refrigerants
Unit Size:Â 3 cu-in
Features
- Filtration first for more effective use of surface area of desiccant
- High moisture and acid removal capacity
- Solid copper connections
- Corrosion-resistant epoxy powder paint finish
- Approved for POE oils with Copeland® compressors
- Shock-resistant steel shell construction
- Desiccant blend optimized for high water capacity and acid capacity
