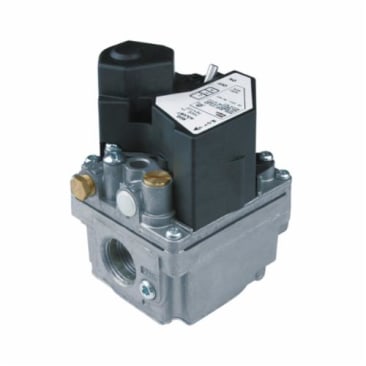

WHITE RODGERS 36H32-423 3/4 UNIVERSAL 1-STAGE FAST OPEN NATURAL GAS VALVE WITH PROPANE CONVERSION
MFR Part #:Â 36H32-423
SKU #:Â 1688147
Brand: White-Rodgers™
White-Rodgers™ 36H32-423 Gas Valve, 3/4 in, HSI/DSI/Intermittent/Proven Pilot Ignition, 300000 Btu/cu-ft Nominal, Liquid Propane/Natural Gas, 24 V Coil
(2) 3/4 to 1/2 in Reducer Bushings and LP Conversion Kit
CSA Certified
Product Details
Attributes
Features
Resources
White-Rodgers™ Gas Valve, Series: 36H, 3/4 in Nominal, 0.5 psi Pressure, HSI/DSI/Intermittent/Proven Pilot Ignition, 300000 Btu/cu-ft Nominal, Liquid Propane/Natural Gas Gas, 24 V Coil, 1/4 in Male Spade Quick-Connect Terminal Electrical Connections, -40 to 175 deg F, Import
Combination multi-function controls for a wide range of applications. the 36H combination gas control valve is a versatile multi-function control designed to meet the requirements for use with intermittent ignition systems (direct ignition, proven pilot, HSI). 36H is our highest capacity combination gas valve.
Domestic/Import:Import
Ignition Type:HSI/DSI/Intermittent/Proven Pilot
Nominal Size:3/4 in
Pressure Rating:.5 psi
Series:36H
Temperature Rating:-40 to 175 deg F
Coil Voltage:24 V
Electrical Connections:1/4 in Male Spade Quick-Connect Terminal
Gas Type:Liquid Propane/Natural Gas
Nominal Capacity:300000 Btu/cu-ft
- Fast opening
- Adjustable regulator
- Quiet operation redundant design
- Inlet/outlet screens
- Tamper resistant screws
- 50/60 Hz
- 0.41 A
- Replaces 36C68-423 and can also be replaced by 36H32-304
- For intermittent ignition systems (Direct Ignition, proven Pilot, HSI)
- 486000 Btu/cu-ft LPG nominal capacity
- Single stage gas valve
Product Details
White-Rodgers™ Gas Valve, Series: 36H, 3/4 in Nominal, 0.5 psi Pressure, HSI/DSI/Intermittent/Proven Pilot Ignition, 300000 Btu/cu-ft Nominal, Liquid Propane/Natural Gas Gas, 24 V Coil, 1/4 in Male Spade Quick-Connect Terminal Electrical Connections, -40 to 175 deg F, Import
Combination multi-function controls for a wide range of applications. the 36H combination gas control valve is a versatile multi-function control designed to meet the requirements for use with intermittent ignition systems (direct ignition, proven pilot, HSI). 36H is our highest capacity combination gas valve.
Attributes
Domestic/Import:Â Import
Ignition Type:Â HSI/DSI/Intermittent/Proven Pilot
Nominal Size:Â 3/4 in
Pressure Rating:Â .5 psi
Series:Â 36H
Temperature Rating:Â -40 to 175 deg F
Coil Voltage:Â 24 V
Electrical Connections:Â 1/4 in Male Spade Quick-Connect Terminal
Gas Type:Â Liquid Propane/Natural Gas
Nominal Capacity:Â 300000 Btu/cu-ft
Features
- Fast opening
- Adjustable regulator
- Quiet operation redundant design
- Inlet/outlet screens
- Tamper resistant screws
- 50/60 Hz
- 0.41 A
- Replaces 36C68-423 and can also be replaced by 36H32-304
- For intermittent ignition systems (Direct Ignition, proven Pilot, HSI)
- 486000 Btu/cu-ft LPG nominal capacity
- Single stage gas valve
