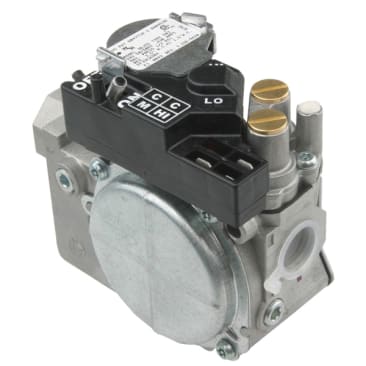

WHITE RODGERS 36J55-214 24V 2-STAGE UNIVERSAL GAS VALVE WITH PROPANE CONVERSION KIT & REDUCING BUSHING
MFR Part #:Â 36J55-214
SKU #:Â 1685299
Brand: White-Rodgers™
UPC:Â 786710535758
White-Rodgers™ 36J55-214 2-Stage Gas Valve, 1/2 in, Electronic Ignition, 140000 Btu/hr Nominal, Liquid Propane/Natural Gas, 24 V Coil
LP Conversion Kit
CSA Certified
Product Details
Attributes
Features
Resources
White-Rodgers™ Gas Valve, 2-Stage, Series: 36J, 1/2 in Nominal, NPT End Style, 0.5 psi Pressure, Electronic Ignition, 140000 Btu/hr Nominal, Liquid Propane/Natural Gas Gas, 24 V Coil, -40 to 175 deg F, Import
The 36J is a combination gas control valve designed for use with non-piloted intermittent ignition systems. The control is designed to meet today's maximum capacity, smaller size and high efficiency gas systems.
Country Of Origin:Mexico
Domestic/Import:Import
Pressure Rating:.5 psi
Series:36J
Temperature Rating:-40 to 175 deg F
Type:2-Stage
Coil Voltage:24 V
End Style:NPT
Gas Type:Liquid Propane/Natural Gas
Ignition Type:Electronic
Nominal Capacity:140000 Btu/hr
Nominal Size:1/2 in
- Inlet and outlet screens
- Quiet redundant
- Built-in pressure tap
- Quick-connect terminals 1/4 in
- 2-3/4 in swing radius
- Any position mounting
- Electric on-off switch
- Adjustable regulator
- Slow opening characteristic
- 140000 Btu/hr natural gas capacity at 0.64 specific gravity
- 226800 Btu/hr LP gas capacity at 1.53 specific gravity
- Regulator adjustment range - 1 to 4 in low, 2 to 5 in high for natural gas
- Regulator adjustment range - 4 to 10 in low, 6 to 12 in high for LP gas
- 90 deg bottom outlet flow direction
Product Details
White-Rodgers™ Gas Valve, 2-Stage, Series: 36J, 1/2 in Nominal, NPT End Style, 0.5 psi Pressure, Electronic Ignition, 140000 Btu/hr Nominal, Liquid Propane/Natural Gas Gas, 24 V Coil, -40 to 175 deg F, Import
The 36J is a combination gas control valve designed for use with non-piloted intermittent ignition systems. The control is designed to meet today's maximum capacity, smaller size and high efficiency gas systems.
Attributes
Country Of Origin:Â Mexico
Domestic/Import:Â Import
Pressure Rating:Â .5 psi
Series:Â 36J
Temperature Rating:Â -40 to 175 deg F
Type:Â 2-Stage
Coil Voltage:Â 24 V
End Style:Â NPT
Gas Type:Â Liquid Propane/Natural Gas
Ignition Type:Â Electronic
Nominal Capacity:Â 140000 Btu/hr
Nominal Size:Â 1/2 in
Features
- Inlet and outlet screens
- Quiet redundant
- Built-in pressure tap
- Quick-connect terminals 1/4 in
- 2-3/4 in swing radius
- Any position mounting
- Electric on-off switch
- Adjustable regulator
- Slow opening characteristic
- 140000 Btu/hr natural gas capacity at 0.64 specific gravity
- 226800 Btu/hr LP gas capacity at 1.53 specific gravity
- Regulator adjustment range - 1 to 4 in low, 2 to 5 in high for natural gas
- Regulator adjustment range - 4 to 10 in low, 6 to 12 in high for LP gas
- 90 deg bottom outlet flow direction
