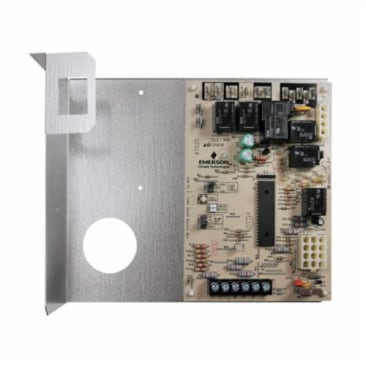

WHITE RODGERS 50A56-956 INTEGRATED 1-STAGE FURNACE CONTROL
MFR Part #:Â 50A56-956
SKU #:Â 1688112
Brand: White-Rodgers™
White-Rodgers™ 50A56-956 Replacement Integrated Furnace Control, 25 V AC, 0.45 A
Controls Gas Valve, Igniter, Blower, Inducer, Humidifier and Air Cleaner
For York Single Stage HSI Controls
CSA Certified|UL Listed
Product Details
Attributes
Features
Resources
White-Rodgers™ Replacement Integrated Furnace Control, Accessory Type: Replacement Integrated Furnace Control, 25 V AC, 0.45 A, Natural, Manufactured, Mixed, LP Gas Gas, 17 s Igniter Warm-Up, Surface Mounting, 4.825 in Width, 1-1/4 in Depth, 7 in Height, Import
The 50A56-956 is an automatic gas interrupted ignition control that employs a microprocessor to continually monitor, analyze, and control the proper operation of the gas burner, inducer, and fan. signals interpreted during continual surveillance of the thermostat and flame sensing element initiate automatic ignition of the burner, sensing of the flame, and system shutoff during normal operation. these controls incorporate system fault analysis for quick gas flow shutoff , coupled with automatic ignition retry upon sensing a fault correction.
Amperage Rating:.45 A
Depth:1-1/4 in
Domestic/Import:Import
Height:7 in
Igniter Warm-Up Time:17 s
Mounting Type:Surface
Voltage Rating:25 V AC
Width:4.825 in
Accessory Type:Replacement Integrated Furnace Control
Gas Type:Natural, Manufactured, Mixed, LP Gas
- System diagnostics LED with fault recall
- Twinning connection
- Fused to protect low voltage system transformers
- Selectable continuous fan speed
- Third fan speed
- Two stage cooling Y2 input
- -40 to 176 deg F
- 5 to 93 percent relative humidity
- 77 deg F electrical rating
- 1.5 A valve relay
- 6 A ignitor relay
- 2.2 FLA to 3.5 LRA inducer relay
- 14.5 FLA to 25 LRA circulator relay
- 1 uA DC min current
- 0.10 uA DC max current
- 100 M ohm leakage resistance
- Maximum timing specification
- 0.8 sec flame establishing
- 2 sec flame failure response
Product Details
White-Rodgers™ Replacement Integrated Furnace Control, Accessory Type: Replacement Integrated Furnace Control, 25 V AC, 0.45 A, Natural, Manufactured, Mixed, LP Gas Gas, 17 s Igniter Warm-Up, Surface Mounting, 4.825 in Width, 1-1/4 in Depth, 7 in Height, Import
The 50A56-956 is an automatic gas interrupted ignition control that employs a microprocessor to continually monitor, analyze, and control the proper operation of the gas burner, inducer, and fan. signals interpreted during continual surveillance of the thermostat and flame sensing element initiate automatic ignition of the burner, sensing of the flame, and system shutoff during normal operation. these controls incorporate system fault analysis for quick gas flow shutoff , coupled with automatic ignition retry upon sensing a fault correction.
Attributes
Amperage Rating:Â .45 A
Depth:Â 1-1/4 in
Domestic/Import:Â Import
Height:Â 7 in
Igniter Warm-Up Time:Â 17 s
Mounting Type:Â Surface
Voltage Rating:Â 25 V AC
Width:Â 4.825 in
Accessory Type:Â Replacement Integrated Furnace Control
Gas Type:Â Natural, Manufactured, Mixed, LP Gas
Features
- System diagnostics LED with fault recall
- Twinning connection
- Fused to protect low voltage system transformers
- Selectable continuous fan speed
- Third fan speed
- Two stage cooling Y2 input
- -40 to 176 deg F
- 5 to 93 percent relative humidity
- 77 deg F electrical rating
- 1.5 A valve relay
- 6 A ignitor relay
- 2.2 FLA to 3.5 LRA inducer relay
- 14.5 FLA to 25 LRA circulator relay
- 1 uA DC min current
- 0.10 uA DC max current
- 100 M ohm leakage resistance
- Maximum timing specification
- 0.8 sec flame establishing
- 2 sec flame failure response
