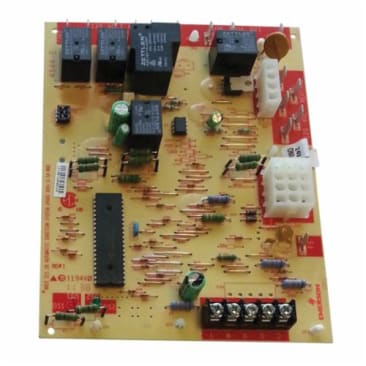

WHITE RODGERS 50A66-743 REPLACEMENT INTEGRATED FURNACE CONTROL HOT SURFACE IGNITON FOR 80V IGNITORS

White-Rodgers™ Replacement Integrated Furnace Control, Accessory Type: Replacement Integrated Furnace Control, 25 V AC, 0.45 A, Natural, Manufactured, Mixed, LP Gas Gas, 20 s Igniter Warm-Up, Surface Mounting, Silicon Nitride, Import

The 50A66-743 is an automatic gas interrupted ignition control that employs a microprocessor to continually monitor, analyze, and control the proper operation of the gas burner, inducer, and fan. signals interpreted during continual surveillance of the thermostat and flame sensing element initiate automatic ignition of the burner, sensing of the flame, and system shutoff during normal operation. these controls incorporate system fault analysis for quick gas flow shutoff , coupled with automatic ignition retry upon sensing a fault correction.
