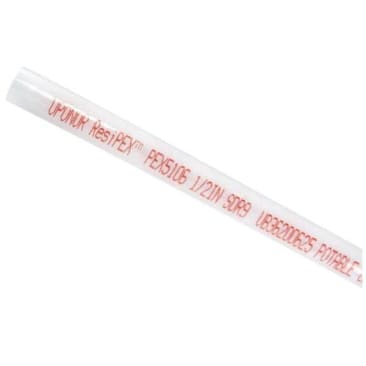

WIRSBO F8260500 Image 1

1/2IN X 300FT WHITE-RED PRINT RESIPEX PIPE

MFR Part #: F8260500
SKU #: 1688988
Brand: Uponor
UPC: 673372701891
Uponor ResiPEX™ F8260500 PEX Tubing, 1/2 in, 300 ft L, Polyethylene, 0.475 in ID, 5/8 in OD, White
ASTM F1960/F2023/F876/F877|CAN/CSA B137.5|NSF/ANSI 14|NSF/ANSI/CAN 61

Uponor ResiPEX™ PEX Tubing, 1/2 in Nominal, 0.475 in Inside Diameter, 5/8 in Outside Diameter, 300 ft Length, Material Construction: XLPE, White, 100 to 160 psi Working Pressure, Resistance Properties: Fire, For Use With: Uponor ProPEX Fittings and Rings, 73 to 180 deg F, Additional Information: 19.7 in ID x 32 in OD Coil Dimensions, With Red Print

Exclusively available in Canada, Uponor ResiPEX™ is a PEX-a, competitive piping solution engineered specifically to meet the performance requirements for single-family residential plumbing applications where fire-resistive construction is NOT required. The product is available with a red or blue print string to differentiate hot and cold potable water lines and is available in 1/2" and 3/4" coils and 20-ft. straight lengths. The offering is compatible with ProPEX® ASTM F1960 expansion, ASTM F2098 clamp, ASTM F1807 crimp, and ASSE 1061 push fit connection systems and is covered by a 5-year pipe or a 10-year system warranty when used with Uponor ProPEX fittings and rings.

Product Details

Uponor ResiPEX™ PEX Tubing, 1/2 in Nominal, 0.475 in Inside Diameter, 5/8 in Outside Diameter, 300 ft Length, Material Construction: XLPE, White, 100 to 160 psi Working Pressure, Resistance Properties: Fire, For Use With: Uponor ProPEX Fittings and Rings, 73 to 180 deg F, Additional Information: 19.7 in ID x 32 in OD Coil Dimensions, With Red Print

Exclusively available in Canada, Uponor ResiPEX™ is a PEX-a, competitive piping solution engineered specifically to meet the performance requirements for single-family residential plumbing applications where fire-resistive construction is NOT required. The product is available with a red or blue print string to differentiate hot and cold potable water lines and is available in 1/2" and 3/4" coils and 20-ft. straight lengths. The offering is compatible with ProPEX® ASTM F1960 expansion, ASTM F2098 clamp, ASTM F1807 crimp, and ASSE 1061 push fit connection systems and is covered by a 5-year pipe or a 10-year system warranty when used with Uponor ProPEX fittings and rings.

Attributes

Additional Information19.7 in ID x 32 in OD Coil Dimensions, With Red Print
ColorWhite
For Use WithUponor ProPEX Fittings and Rings
Inside Diameter.475 in
Length300 ft
MaterialPolyethylene
Material ConstructionXLPE
Nominal Size1/2 in
Outside Diameter5/8 in
Resistance PropertiesFire
Temperature Rating73 to 180 deg F
Working Pressure100 to 160 psi
