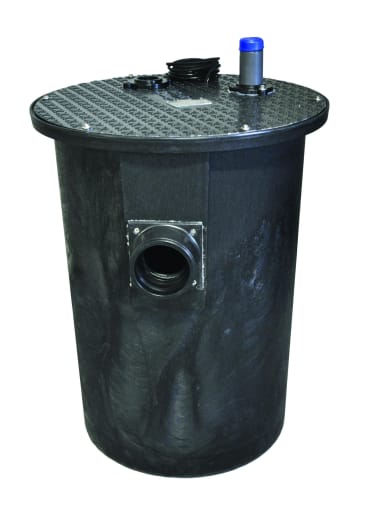

LIBERTY 702/PRG101A Image 1

LIBERTY 702/PRG101A 30X40 1HP 115V 1PH SEWAGE PACKAGE

MFR Part #: 702/PRG101A
SKU #: 3285876
Brand: Liberty Pumps®
UPC: 671812140316
Liberty Pumps® 702/PRG101A 700, 2 in Discharge Pipe, 2 in Solid Handling, 1 hp, 115 V AC, 1 Phase , Polyethylene, 3400 rpm Motor
3 Years Limited
1-ph Motor and Fiberglass Cover
Multi-Unit Residential and Commercial Installations Applications
cCSAus Certified | SSPMA Certified | PROP65: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Liberty Pumps®, 702/PRG101A, Pre-Assembled, Series: 700, 48 gpm Flow Rate, 4 in Inlet, 115 V AC, 12 A Full Load, 1 ph, 1 hp, 50 ft Maximum Head, 70 gal Capacity, 2 in Discharge Pipe, Specifications: 1 Safety Factor, 2 in Solids Handling, Polyethylene, 3400 rpm Motor

For multi-unit residential and commercial installations, the 700 series simplex sewage package arrives fully assembled with any of Liberty's PRG series sewage pumps. Available with many options including 2 in discharge and pre-mounted alarm floats.

Product Details

Liberty Pumps®, 702/PRG101A, Pre-Assembled, Series: 700, 48 gpm Flow Rate, 4 in Inlet, 115 V AC, 12 A Full Load, 1 ph, 1 hp, 50 ft Maximum Head, 70 gal Capacity, 2 in Discharge Pipe, Specifications: 1 Safety Factor, 2 in Solids Handling, Polyethylene, 3400 rpm Motor

For multi-unit residential and commercial installations, the 700 series simplex sewage package arrives fully assembled with any of Liberty's PRG series sewage pumps. Available with many options including 2 in discharge and pre-mounted alarm floats.

Attributes

Amperage Rating: 12 A Full Load
Capacity: 70 gal
Country Of Origin: US
Discharge Pipe Size: 2 in
Flow Rate: 48 gpm
Horsepower: 1 hp
Inlet Size: 4 in
Material: Polyethylene
Maximum Head: 50 ft
Motor Speed: 3400 rpm
Solids Handling: 2 in
Type: Pre-Assembled
Voltage Rating: 115 V AC

Features

  • Pre-assembled sewage ejector system
  • Stainless steel cover bolts
  • 2 in threaded vent flange
  • 4 in inlet hub with rubber pipe seal
  • Heavy-duty structural foam basin
  • "Torque-stop" pump restraints

Resources

Instruction/Installation Manual
Specification Sheet
Warranty Information
