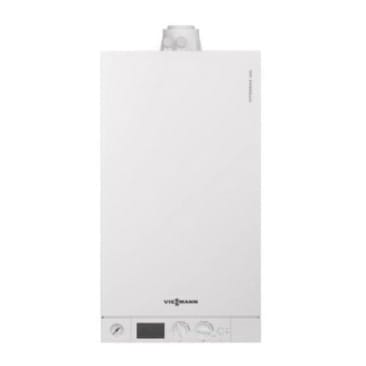

VIESSMANN B1KA VITODEN BOILER NAT GAS
MFR Part #: B1KA
SKU #: 1206971
Brand: Viessmann Manufacturing®
VIESSMANN® B1KA Gas Fired Condensing Combination Boiler, 95 % AFUE, 125000 Btu/hr BTU, 115 VAC, 1 ph Phase, NPT
Limited Lifetime
AHRI Certified|ASME Specified|CSA Certified|ENERGY STAR® Certified
Product Details
Attributes
Features
Resources
VIESSMANN® Gas Fired Condensing Combination Boiler, 115 VAC, 1.15 A, 130 W Power, 60 Hz Frequency, 1 ph, 95 % AFUE, 125000 Btu/hr BTU, 6.2 gpm Flow Rate, 45 psi Pressure, NPT Connection, Natural Gas Fuel, Direct Vent, Matrix Cylinder Burner, 29 to 116 MBtu/hr DOE Heating, 2-3/8 in Diameter Flue, Net Rating: 101 MBtu/hr, Noise Rating: 52 dB, 12.96 sq-ft Area, Wall Mounting, 113 deg C, Dimensions: 15-3/4 in H x 27-1/2 in W x 15-3/4 in D
Equipped with a VIESSMANN®® stainless steel heat exchanger for lasting performance and reliability and a modulating MatriX cylinder gas burner, the Vitodens 100-W wall-mounted condensing boiler is the perfect combination of value, quality and VIESSMANN®® technology.
AFUE Rating:95 %
Amperage Rating:1.15 A
Area:12.96 sq-ft
BTU Rating:125000 Btu/hr
Burner Type:Matrix Cylinder
Connection Type:NPT
Dimensions:15-3/4 in H x 27-1/2 in W x 15-3/4 in D
DOE Heating Capacity:29 to 116 MBtu/hr
Flow Rate:6.2 gpm
Frequency Rating:60 Hz
Fuel Type:Natural Gas
Mounting Type:Wall
Net Rating:101 MBtu/hr
Noise Rating:52 dB
Phase:1 ph
Power Rating:130 W
Pressure Rating:45 psi
Temperature Rating:113 deg C
Vent Type:Direct
Voltage Rating:115 VAC
Flue Diameter:2-3/8 in
- Fits any home and budget with high performance at an attractive price
- Lasting performance with proven Viessmann® titanium-stabilized stainless steel Inox-Radial heat exchanger
- Built-in on-demand domestic hot water with Vitodens 100-W, B1KA combination boiler
- Outstanding efficiency of 95% AFUE on all models
- Low-emission combustion for environmentally friendly operation
- Fully modulating input eliminates energy waste
- Extremely quiet operation, quieter than most refrigerators
- Outstanding efficiency
- Lasting performance
- Low-emission
- Control variety
- Compact, lightweight wall-mount design
- Extremely quiet operation
Product Details
VIESSMANN® Gas Fired Condensing Combination Boiler, 115 VAC, 1.15 A, 130 W Power, 60 Hz Frequency, 1 ph, 95 % AFUE, 125000 Btu/hr BTU, 6.2 gpm Flow Rate, 45 psi Pressure, NPT Connection, Natural Gas Fuel, Direct Vent, Matrix Cylinder Burner, 29 to 116 MBtu/hr DOE Heating, 2-3/8 in Diameter Flue, Net Rating: 101 MBtu/hr, Noise Rating: 52 dB, 12.96 sq-ft Area, Wall Mounting, 113 deg C, Dimensions: 15-3/4 in H x 27-1/2 in W x 15-3/4 in D
Equipped with a VIESSMANN®® stainless steel heat exchanger for lasting performance and reliability and a modulating MatriX cylinder gas burner, the Vitodens 100-W wall-mounted condensing boiler is the perfect combination of value, quality and VIESSMANN®® technology.
Attributes
AFUE Rating: 95 %
Amperage Rating: 1.15 A
Area: 12.96 sq-ft
BTU Rating: 125000 Btu/hr
Burner Type: Matrix Cylinder
Connection Type: NPT
Dimensions: 15-3/4 in H x 27-1/2 in W x 15-3/4 in D
DOE Heating Capacity: 29 to 116 MBtu/hr
Flow Rate: 6.2 gpm
Frequency Rating: 60 Hz
Fuel Type: Natural Gas
Mounting Type: Wall
Net Rating: 101 MBtu/hr
Noise Rating: 52 dB
Phase: 1 ph
Power Rating: 130 W
Pressure Rating: 45 psi
Temperature Rating: 113 deg C
Vent Type: Direct
Voltage Rating: 115 VAC
Flue Diameter: 2-3/8 in
Features
- Fits any home and budget with high performance at an attractive price
- Lasting performance with proven Viessmann® titanium-stabilized stainless steel Inox-Radial heat exchanger
- Built-in on-demand domestic hot water with Vitodens 100-W, B1KA combination boiler
- Outstanding efficiency of 95% AFUE on all models
- Low-emission combustion for environmentally friendly operation
- Fully modulating input eliminates energy waste
- Extremely quiet operation, quieter than most refrigerators
- Outstanding efficiency
- Lasting performance
- Low-emission
- Control variety
- Compact, lightweight wall-mount design
- Extremely quiet operation
