FRANKE ALBS6805P-1 SINGLE BOWL 18 GAUGE TOPMOUNT

FRANKE ALBS6805P-1 ADA Single topmount, 18 ga #4 Satin Finish, 1 Bowl(s), 5 in D Bowl, 17.992 in L Bowl, 15.984 in W Bowl, 18 Gauge, Ez Torque Installation System, Topmount Installation, Cns 18/10 Material Code, 20.118 in L, 20.551 in W, 1-1/2 in Tailpiece Diameter, Type 304 Material, Left Rear, 3-1/2 in Waste, Wheelchair Accessible

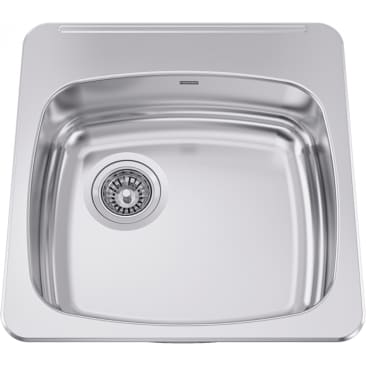

Wheelchair accessible, single compartment, self rimming topmount sink with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fitting, factory applied rim seal, cutout template, and factory installed EZ TORQUE™ fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4- 08. Meets ADA (Americans with disabilities act guidelines), ANSI A117.1 (Accessible and usable buildings and facilities), and CSA B651-04 (Accessible design for the built environment). Check local codes to ensure compliance. Left rear waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece. Model Options, specify when ordering: ALBS6805P-1-1, 1 faucet hole, 1 1/2" diameter. ALBS6805P-1-3, 3 faucet holes, 1 1/2" diameter, 4" centres, 8" centreset. ALBS6805P-1, Custom (non- returnable). 20 9/16 x 20 1/8" Overall. 16 x 18 x 5" Bowl. (FB x LR x D). 522 x 511 mm Overall. 406 x 457 x 127 mm Bowl. (FB x LR x D).
